Set di dieci substrati di zaffiro policristallino

10 pieces of polycrystalline sapphire substrates.

Size of each substrates is 24х19.3x0.5mm.


Sample preparation procedure:

1. Take a clean substrate. Cut off a strip of a double-sided adhesive tape, slightly wider than the sample.

2. Stick the adhesive tape to the substrate, smooth its surface out with the back of the tweezers to remove air bubbles between the substrate and the adhesive tape.

3. Put the sample, for example, a graphite plate (HOPG), on the adhesive tape and carefully press it with tweezers in several places (not touching the area intended for the investigation) (Fig. 2-17).

NOTE. After the sample is fixed on the substrate, a noticeable vertical drift of the sample can occur within one hour (due to the slow relaxation of sticky tape). This drift should be taken into account. If a minimal drift is required due to the nature of the investigation, prepare the sample beforehand (at least in an hour before the investigation).

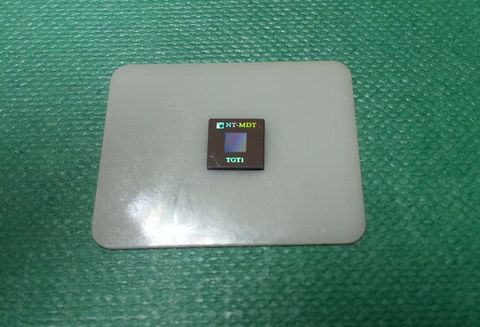

SU001 sapphire substrate with fixed TGT1 grating
